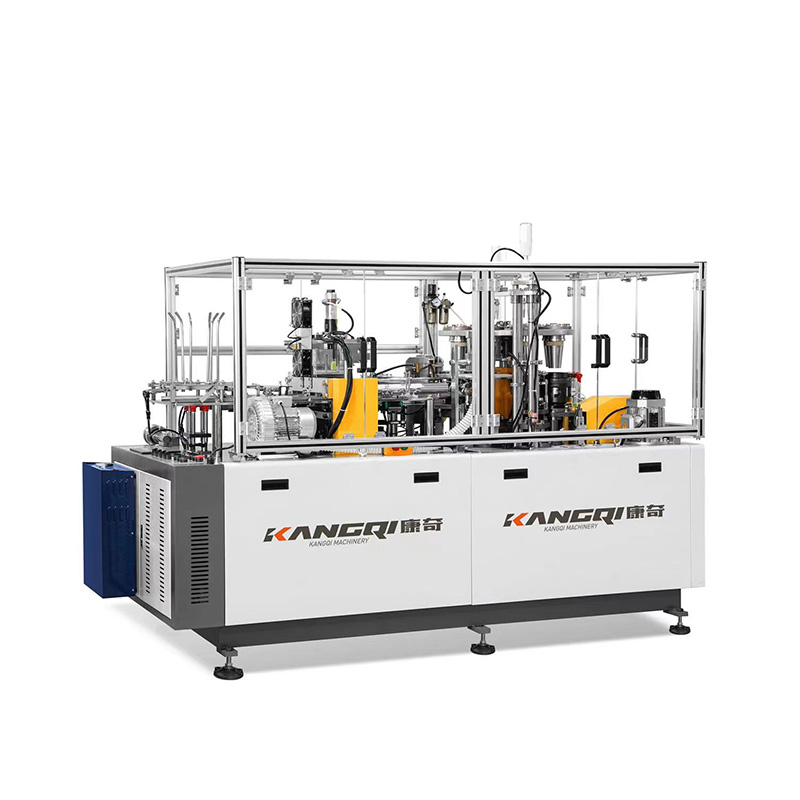

单盘中速12型纸杯成型机

ZS-12 Middle High speed Single Turn plate Paper cup making machine

技术参数

1.纸杯规格：4-16盎司

2.纸杯材料 ：单双面PE 淋膜纸（任意一种都可以）

3.纸张规格：210-380g/㎡

4.生产速度：75-85 pcs/min

5.电源：380V/220V 50Hz

6.总功率：6Kw

7.气源:0.4m3/min

8.重量:2000Kg

9.包装尺寸:2600 x 1150 x 1650mm

Technical Parameters：

1. Paper cup Size: 4-16 ounces

2. Paper cup material: single/double PE coated paper (any one can be used)

3. Paper raw material: 210-380g/m2

4. Production speed: 75-85 pcs/min

5. Power supply: 380V/220V 50Hz

6. Total power: 6Kw

7. Gas source: 0.4m3/min

8. Weight: 2000Kg

9. Packing size: 2600 x 1150 x 1650mm

中速单盘12型是由一个转盘完成纸杯成型机，采用开放式间歇分度机构、齿轮传动、同步带传动、纵轴结构、卷边采用单独升降结构、降低了主功能机构的行程、合理分布各个功能总成；整机采用定时定量油脂润滑的方式，减低了机器零件的磨损；制杯过程PLC控制，采用光电传感器监控，步进电机送料（有杯片送料，没杯片不送料），从而提高设备性能，达到快速平稳运行，实现了故障自动停机，大大降低了工人劳动强度，提高了设备的安全稳定性。

The ZS-12Middle High speed Single Turn plate Paper cup making machine is a paper cup forming machine completed by a single turntable. It adopts an open intermittent indexing mechanism, gear transmission, synchronous belt drive, vertical axis structure, and a separate lifting structure for the curling, which reduces the stroke of the main functional mechanism. It has reasonable distribution of various functional assemblies. The whole machine adopts the method of regular quantity grease lubrication in time, which reduces the wearing of machine parts. Whole cup making process is controlled by PLC, with photoelectric sensor monitoring. The step motor control paper feeding(have paper then feeding, no paper, then no feeding). In order to improve the performance of the equipment, achieve fast and smooth operation, realize automatic shutdown of the fault, greatly reduce the labor intensity of the workers, and improve the safety and stability of the equipment.

通过简化制杯工艺流程，送纸、粘合、上杯、送底、加热、卷底、滚花、卷口、卸杯、检测、自动计数收杯，是制作纸杯的最优选择。

By simplifying the cup making process, feeding, adhesive, cupping, bottoming, heating, bottoming, knurling, curling, unloading, inspection, and automatic counting. Our machine is best choices for making paper cups.
