纸杯机当前位置:首页纸杯机

双淋膜纸杯机

发布日期:[2018-08-06]     点击率:

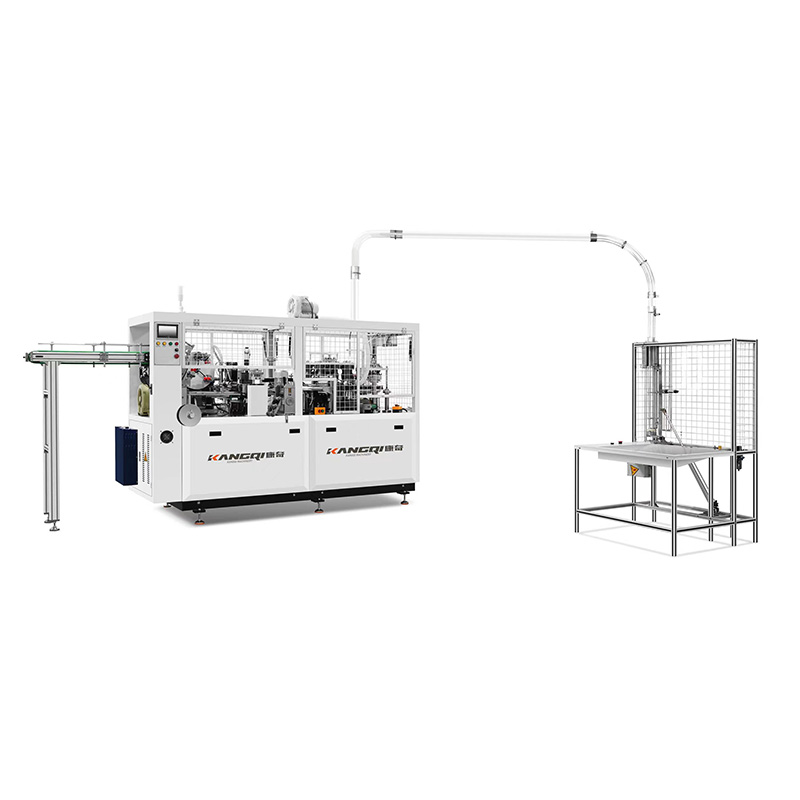

双淋膜纸杯机

Model BJ-A12 Ultrasonic Two-PE Paper Cup Forming Machine is an automatic machine with multi-working station, which has the function of photocell detection, failure alarm, counter and the advantages of humanism design, safer operation and easier maintenance.

It makes both one-side and two-side PE-film-coated paper cups after running a whole procedure of automatic pre-printed-fan=shape-paper feeding, cup-side-body sealing)ultrasonic wave),silicon e-oil lubricating(for top curling),bottom punching, bottom pre-heating and pre-folding, main heating, bottom knurling(cool device),top curling and cup discharging.

It is an ideal equipment of making paper cups for all kings of drinks (hot and cold )disposable paper cups: paper tea cup, coffee cup, cold-beverage cup, beer cup, ice-cream cup etc.

BJ-A12型全自动超声波两面PE淋膜纸杯成型机是一种多工位自动成型机械,它通过自动送纸(印刷好的扇型纸片)、封合(超声波封合纸杯壁)、注油(上卷口润滑)、冲底(从卷筒纸上自动冲裁杯底)、加热、滚花(杯底封合)、卷边以及卸杯收集等连续工序、以及具有光电检测、故障报警、计数等功能、是生产饮料纸杯、茶水纸杯、咖啡纸杯、广告纸杯以及市场纸杯、冰激凌纸杯或其他的一次性食品纸质容器的理想设备。


BJ-A12型纸杯成型机是生产“一面PE淋膜和两用PE淋膜”纸杯的理想设备。本机操作简便(一个人)、性能稳定、占地少、效益高,是投资创业的重要项目。


主要技术参数:Main technical parameters

纸杯规格:3盎司-12盎司

paper cup size:30z-120z (mold exchangeable)

纸质原料:140-350克/平方米的一面或是双面PE淋膜纸张;

raw material :one-side or tuo side PE (polythylene)film coated /laminated paper;suitable paper weight:140-350gsm;


生产速度:40-50只/分钟

rated productivity :40-50pcs/minute;

电源要求:220V 50HZ或者380V 50HZ都可使用:

power source:220v/380v 50hz or other reduired

总功率:4.8KW

TOtal power:4.8kw

机器重量:1500KG

total weight:1500kg

外形尺寸:长*宽*高 2700*1200*1600

packge size:(l*w*h):2700*1200*1600mm

气源要求:工作气压:0.4MPA 工作气量:0.6立方米/分钟(需要购买配备空气压缩机)

working air source:air pressure:0.4mpa airout-put:0.6m3/minute;


纸杯生产成本:根据纸杯大小、纸张PE淋膜重量及印刷颜色数量来决定:

Making double pe coated paper cupsneed to buy an air compressor;

其他备注:我们可以按照客户的要求定制各种规格的纸杯机械模具。
